G9a: A fragment-based drug design (FBDD) programme to identify lysine methyltransferase inhibitors for the treatment of cancer

Domainex successfully used MicroScale Thermophoresis to screen a sub-set of our fragment library against the lysine methyltransferase, G9a, with a hit rate of 5.3%.

Challenge

Lysine methyltransferases (KMTs) are involved in epigenetic gene regulation. Histones are proteins around which the DNA is wrapped in chromatin, and covalent modification of the histone amino-acid side chains generates an epigenetic ‘code’ that determines whether the associated gene is expressed or repressed. KMTs catalyse the transfer of methyl groups from S-adenosyl methionine (SAM) to lysine residues on histone proteins (Figure 1). G9a mono- or di-methylates Histone 3 at Lysine residue 9 (H3K9) and this represses gene expression. Literature supports the role of G9a in mechanisms of carcinogenesis, making it an attractive oncology target.1-5

Histone methylation

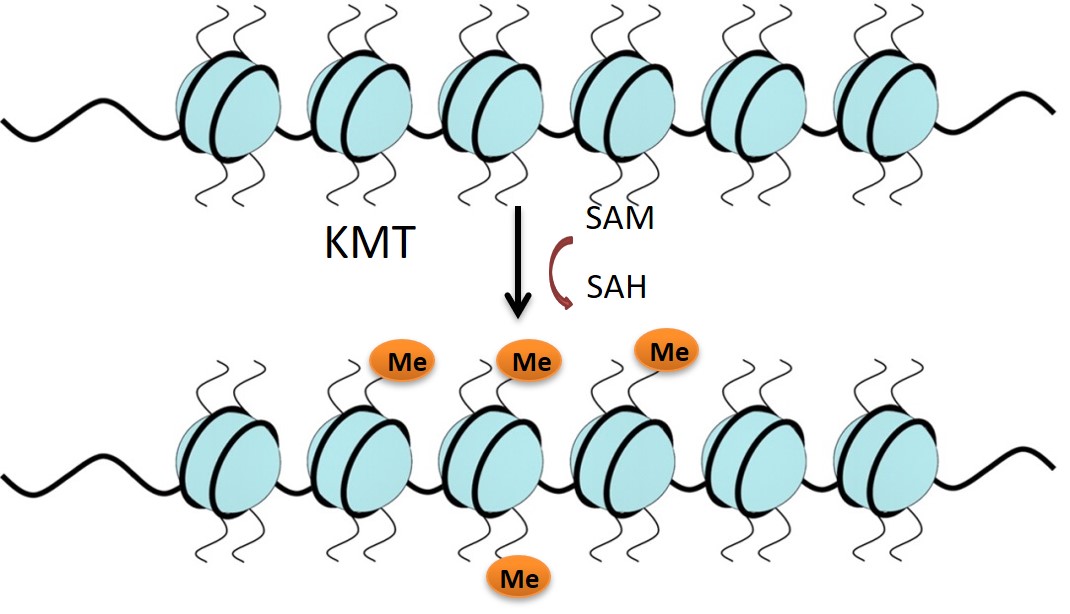

Figure 1: G9a catalyses the transfer of methyl groups to histones

Solution

Domainex has an extensive fragment library which contains >1000 fragments and has been carefully designed to maximise the chances of finding suitable chemical starting points (for more details on our library see our FragmentBuilder page). As a proof of concept study, a randomly selected 320 compound sub-set of this fragment library was screened at 1 mM against a G9a-SAM complex using MicroScale Thermophoresis (MST, see our Biophysics page for more details about this technique and our other biophysics services). By using a saturating concentration of SAM, we ensured that the co-factor binding pocket was not available for fragment binding, and so we specifically identified substrate-competitive hits. Fragments were declared as hits if a significant shift in the response compared to the reference was observed (Figure 2).

Hits from MST Screen
Figure 2: Hits identified from the MST screen

The thermophoresis traces allow easy identification of false-positive fragments such as aggregators and compounds effecting the fluorescence signal (Figures 3 and 4, respectively).

MST raw data
Figure 3: MST raw data showing aggregation
MST raw data fluorescence
Figure 4: MST raw data showing auto-fluorescence (green: DMSO, blue: test compound)

A 5.3% hit rate was obtained. Screening the same fragments using Differential Scanning Fluorimetry (DSF) or using an activity-based AlphaScreen assay both showed only a 0.3% hit rate. This illustrates the point that orthogonal biophysical methods can give different results in fragment screening, and it is important to find the best method for any given target. We find MST gives better results than most other biophysical methods, and because of its speed and low protein consumption, it is usually the screening approach that we try first.

Hits were taken into secondary screening to determine their binding affinities (Kd) to the G9a-SAM complex using MST (Examples shown in Table 1).

Table 1: Screening Summary
Frag IDKd[μM]LESTD-NMR Positive BindingX-Ray Structure Resolution
MTP3B6190.661.5 Å
MTP2C3560.41X
MTP4E11150.41X
MTP2D83270.542.0 Å
MTP3G104110.531.8 Å
MTP2H95640.44X
MTP3G17180.36X

Fragment hits were identified with good affinities, and hence excellent ligand efficiency (LE; a value of 0.3 is typically considered to be good).

Orthogonal Hit Validation

Orthogonal confirmation of hit binding to G9a was demonstrated by Saturation Transfer Difference (STD) NMR spectroscopy (Figure 5). Three G9a-fragment structures were solved in-house in the presence of the co-factor, SAM, with a resolution of 1.5–2.0 Å (Figure 6), which revealed different fragment binding modes. This resulted in several different options for fragment elaboration.

STD-NMR confirmation spectra

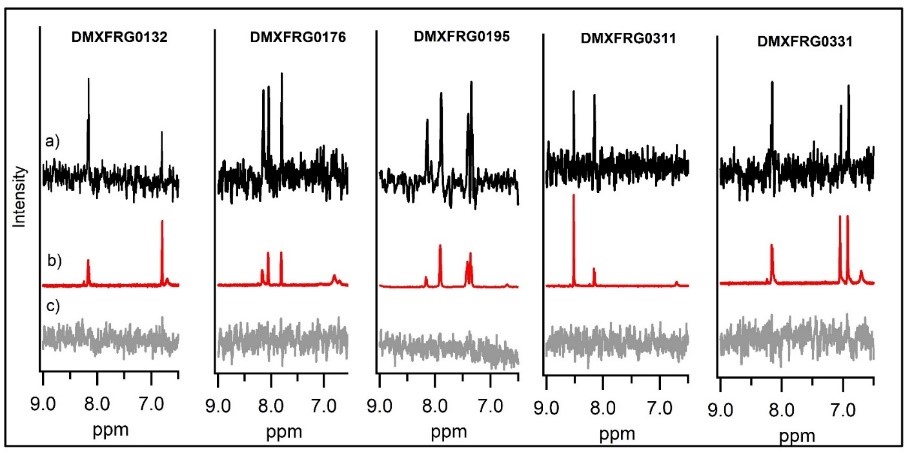

Figure 5: STD-NMR confirmation spectra for five fragments: Spectrum a (black) shows the NMR-STD confirmation for each fragment, as well as the SAM co-binder. Spectrum b (red) shows the reference spectrum of each fragment and the SAM co-binder (8.16 ppm) in PBS, pH 8.5 (10% D2O). Spectrum c (grey) is the false positive control. No signal indicates there was no aggregation of the fragment, and no direct excitation of the fragment or SAM with the on-resonance pulse.
G9a Fragment Structures
Figure 6: In-house G9a-fragment structures (orange: fragment, yellow: SAM)
Fragment Elaboration

Three series were progressed and after one round of fragment elaboration (~50 compounds) a 10-fold increase in affinity was achieved. Figure 7 shows the efficient process used by the medicinal and computational chemists.

Fragment Hits
Figure 7: Rapid elaboration of the fragment hits

Conclusions

MST was used to successfully screen a sub-set of our fragment library against the KMT G9a with a hit rate of 5.3%, identifying several fragments with high ligand efficiencies. Three fragment hits were successfully crystallised bound to G9a, confirming that they were substrate rather than co-factor competitive inhibitors as was desired, and the structural data enabled a SBDD programme for this target. In just one round of fragment elaboration a 10-fold increase in affinity was achieved.


Domainex Expertise

Integrated Drug DiscoveryFragment ScreeningHit IdentificationMicroScale Thermophoresis (MST) Services

BiophysicsOncology • Medicinal and Synthetic ChemistryFragment-baed Drug Design (FBDD)

X-ray CrystallographyStructural BiologyStructure-based Drug Design (SBDD) • Methyltransferase Drug Discovery
